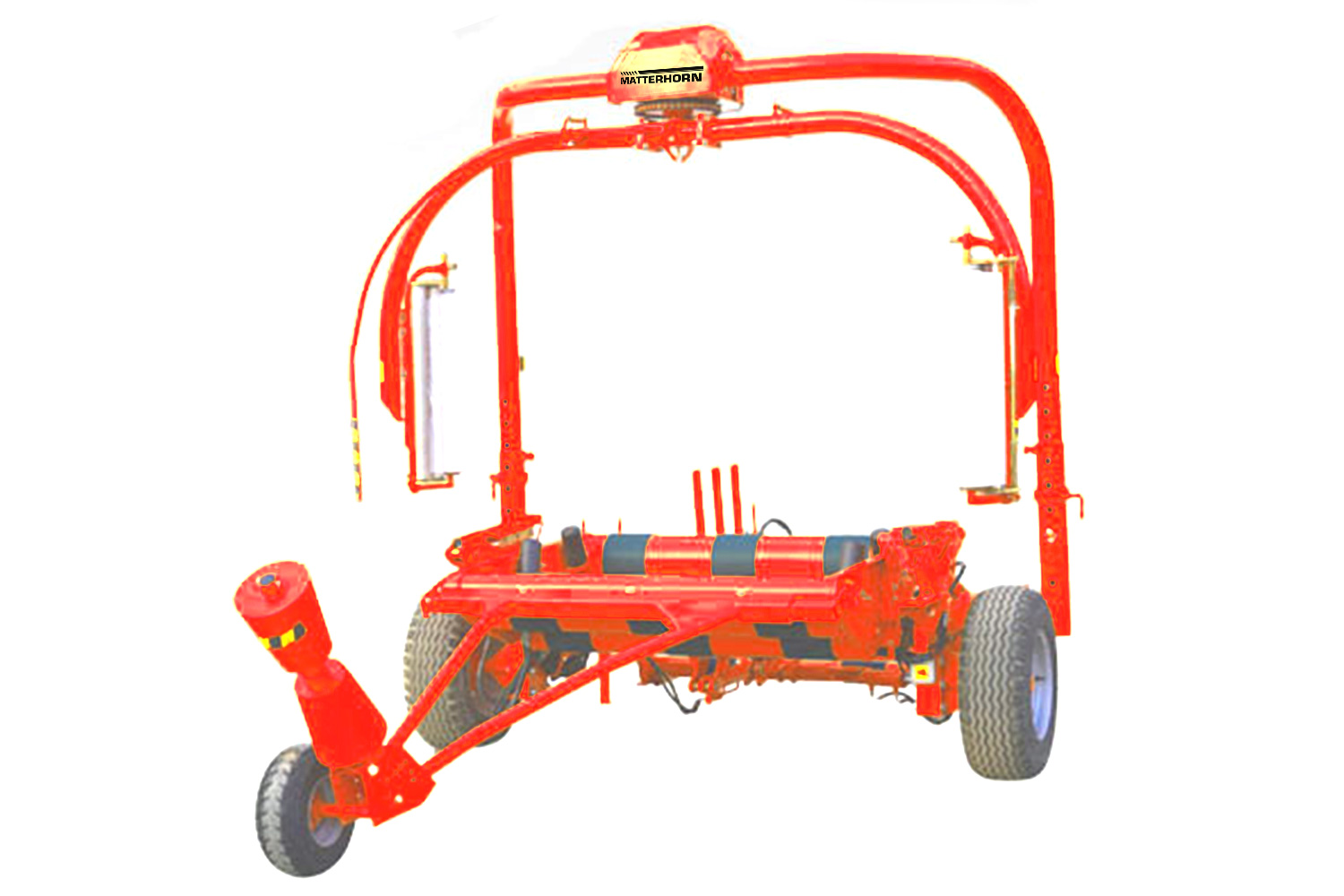

MTBM 150 TRAILED TYPE ROUND BALE WRAPPER

Matterhorn

MTBM 150 TRAILED TYPE ROUND BALE WRAPPER

MTBM 150 Bale Wrapper; Effective up to 1 tone Working dimension of bales: 900 mm – 1500 mm High performance experience with the high tonnage round bale rotating cylinder system Digitally controlled full-automatic double knife system minimizing workload after wrapping process Electronical control panel Placing the bale vertically via bale tipper after wrapping process Adjustable loading arm to five different positions and dimentions of the bales KMatterhorn Agricultural reserves the right to modify the technical characteristics and specification of its products without prior notice.

Length mm 6510
Width mm 2800
Height mm 3100
Weight kg 1400
Tires - 15/55-R17
Wrapping Arm pcs 2
Required Hydraulic Flow lt/min 20 - 30
Required Hydraulic Pressure bar 170 - 200
Maximum Bale Weight kg 1500
Control - Monitori
Film Width mm 750
Hydraulic Connection pcs 2
Bale Wrapping Diameter mm 900-1500
Tractor power HP 50
Wrapping Times min/pcs 30
Productivity pcs/h up to 100
