MTBM 4320 XL AUTOMATIC

Matterhorn

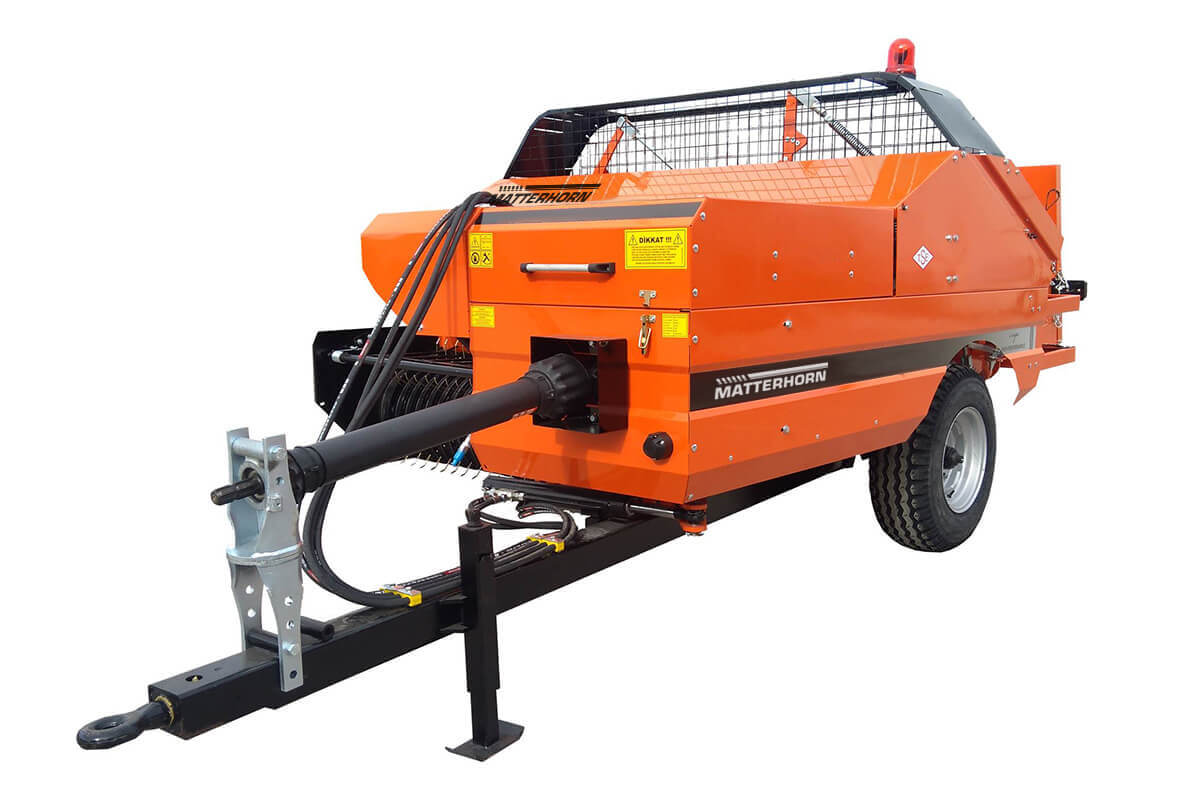

MTBM 4320 XL AUTOMATIC

Balers are the machines which pick up reaped barrel hay, alfalfa wheat and which tie straw or stalk by pressing with rope. Of the most widespread and useful of baler is the machine which makes the bales whose shape is rectangular prism. Owing to this way, for the public, transport storage and using will be much easier. The power required for operation of the machine, is taken by the help of the tractor with shaft. Double – effective hydraulic piston lifting system in the record part helps to pick up all crops from the field by moving up and down. Picking height can be arranged from the driver’s side.

MODEL MTBM 4320 XL AUTOMATIC
LENGHT 5350 MM (WORKING COND.:6320 MM)
WIDTH 2770 MM
HEIGHT 1810 MM
WEIGHT 2170 KG
TIRE SIZE RIGHT 10.0/75-15,3PR
TIRE SIZE LEFT 10.0/75-15,3PR
DAILY CAPACITY 2500/3000 PCS
BALE SIZE 30 X 135 CM
BALE WEIGHT 20/35 KG
POWER REQUIREMENTS 70/80 HP
PISTON STROKE 66 CM
PICK-UP INSIDE WIDTH 1510 MM
CONNECTING SYSTEM 3 ROPE
AUTOMATIC SQUARE BALE THERE IS
SUPPORT WHELL THERE IS
