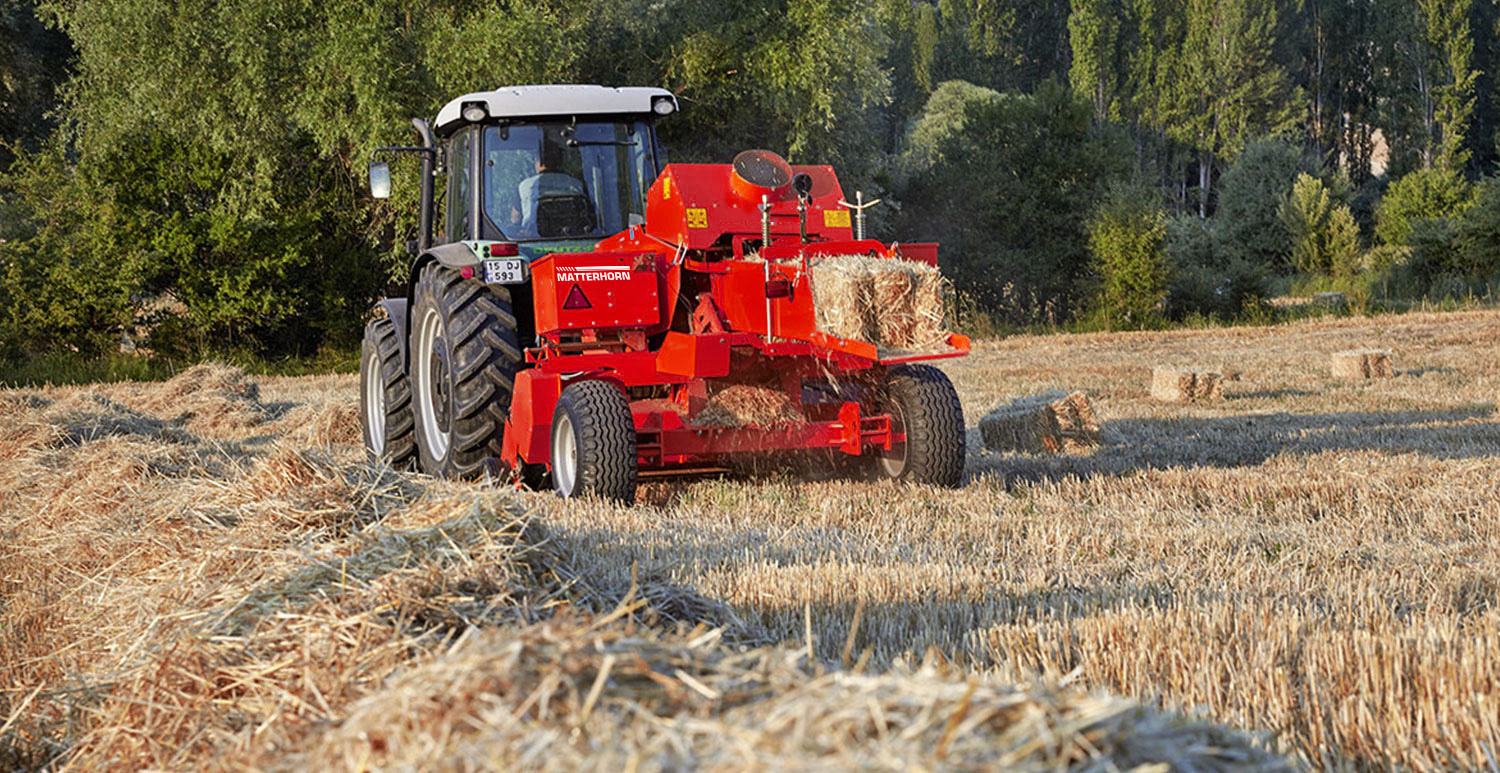

MTBM 520 BALER

Matterhorn

MTBM 520 BALER

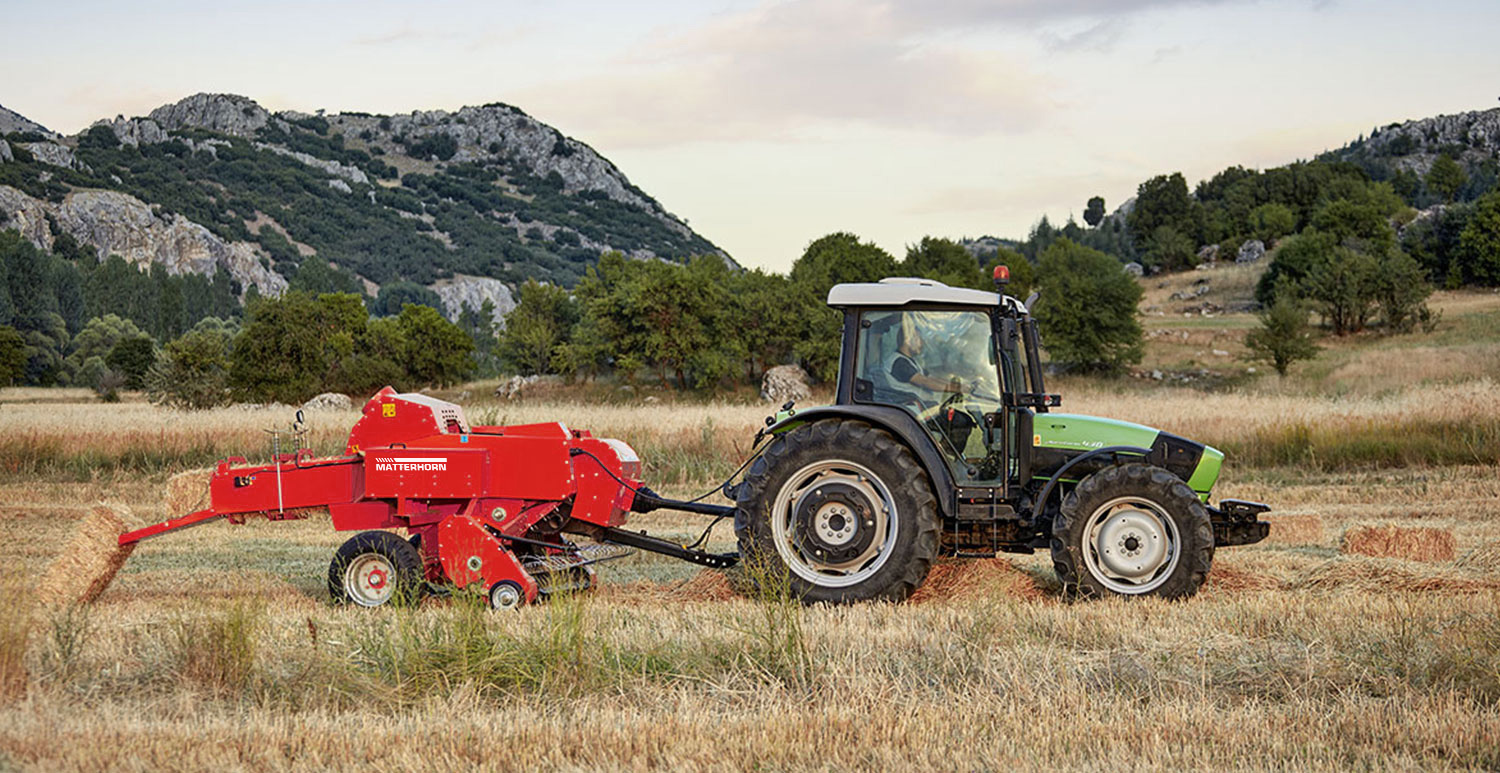

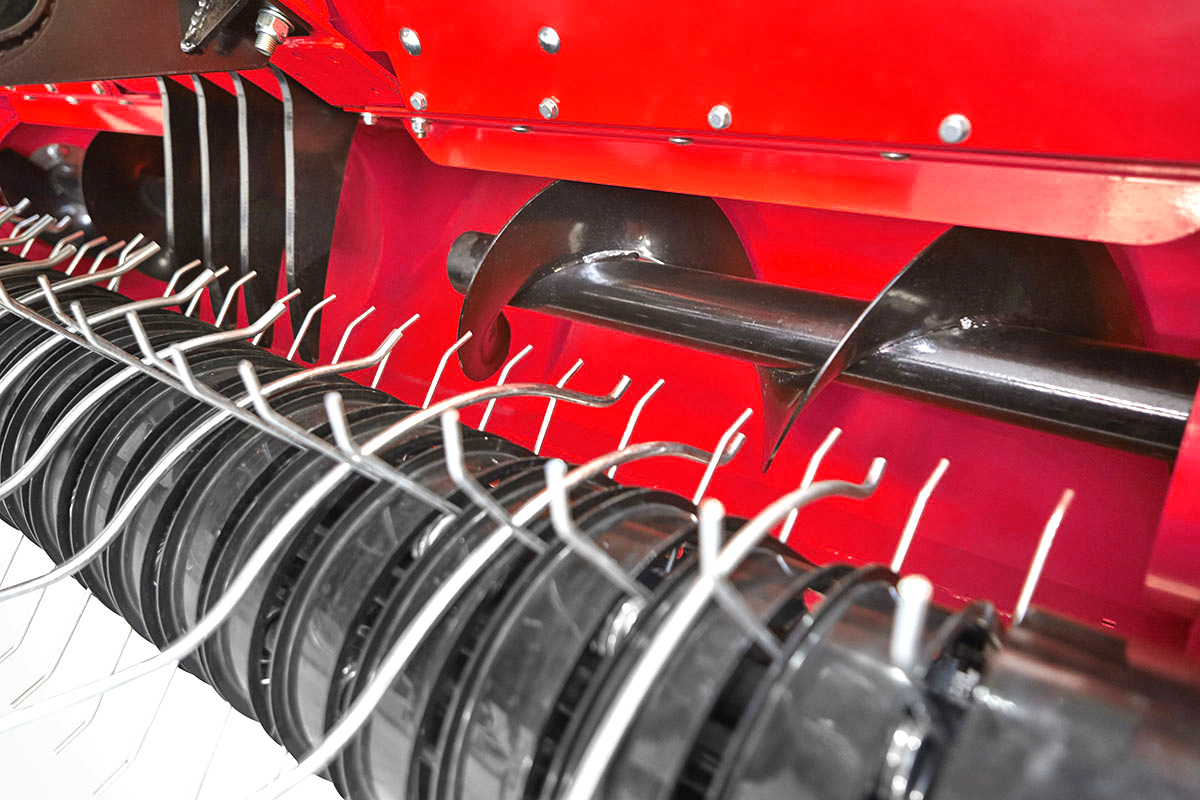

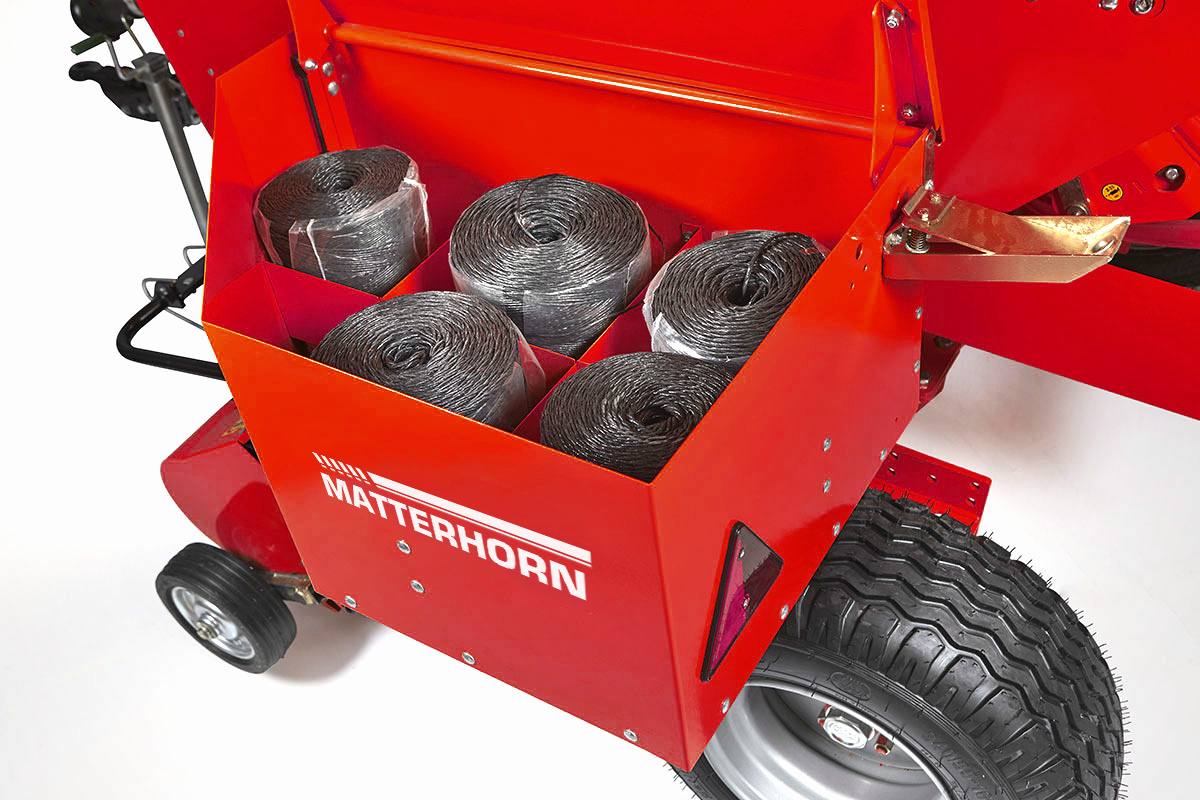

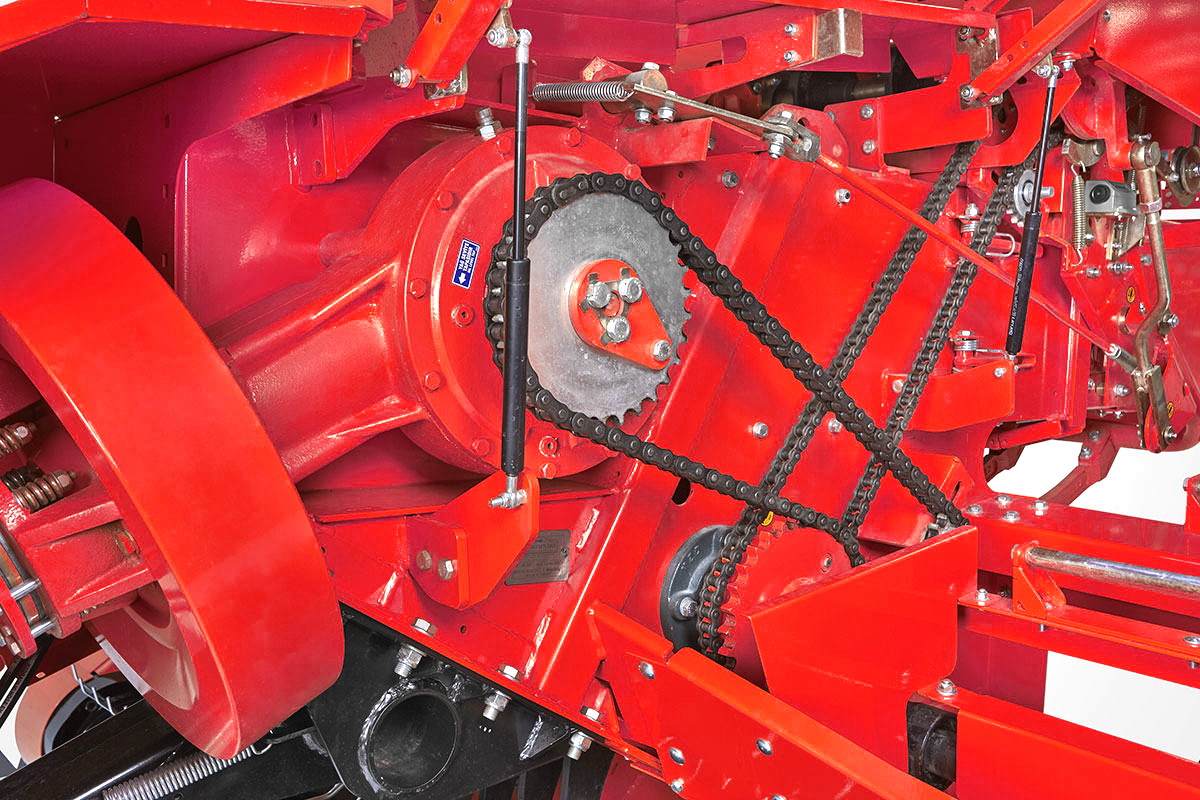

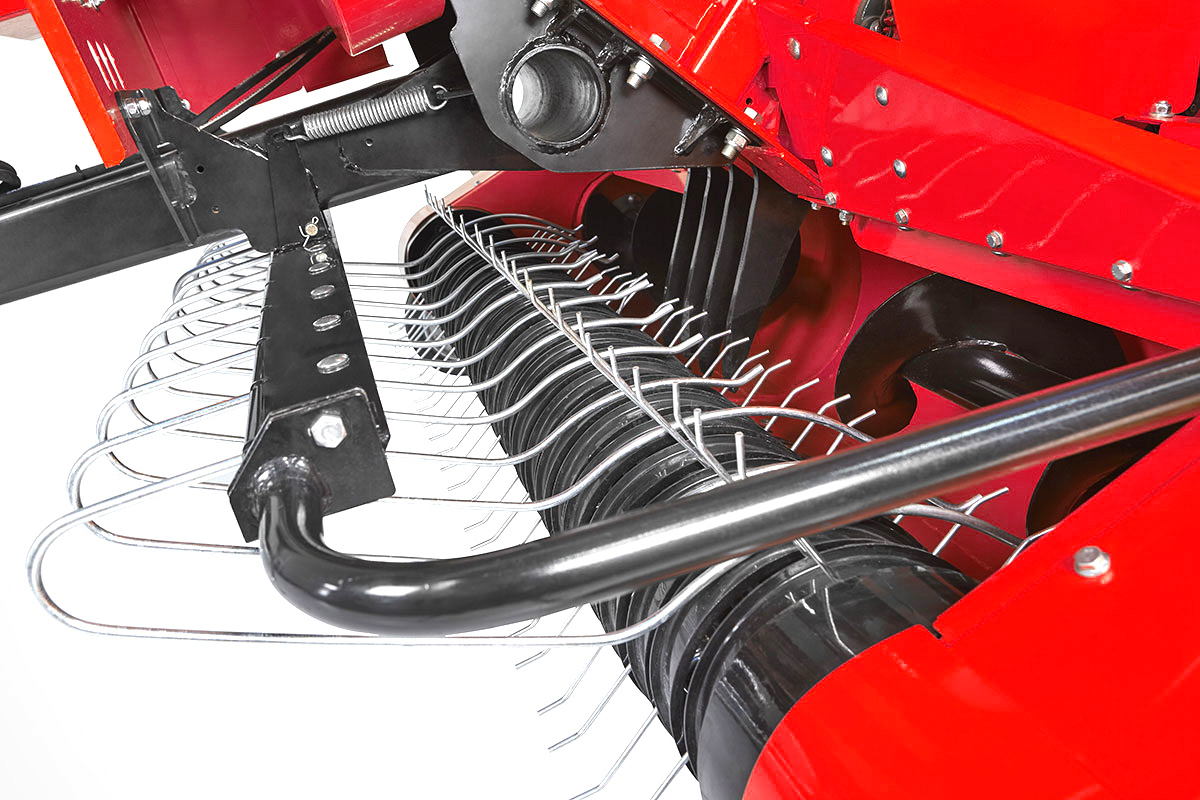

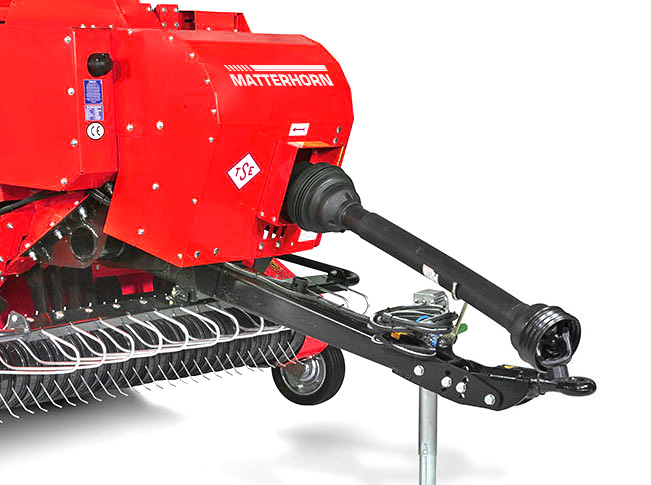

MTBM 520 BALER; Shaft system connected directly to the transmission in order to minimize power loss. Pick-up system hydraulically engaged to transport & working positions. Working in rough conditions, thanks to drawbar made of cast iron Faster feeding and baling thanks to the fork positioned in the center Robust, heavy-duty, quicker plunger providing faster baling" Easy bale length adjustment Long working hours thanks to moveable twine boxes enabling 10 spools of twine Matterhorn Agricultural reserves the right to modify the technical characteristics and specification of its products without prior notice.

Width mm 1930
Bar Gap mm 66
Tine Bars pcs 4 bars
Number of Tines pcs 112
Stroke mm 550
Piston Speed stroke / min 105
Feeding Opening cm2 1410
Bale Dimensions mm 360 x 460
Bale Length mm 300 - 1350
Bale Weight kg 20 - 35
Productivity bale/h 350

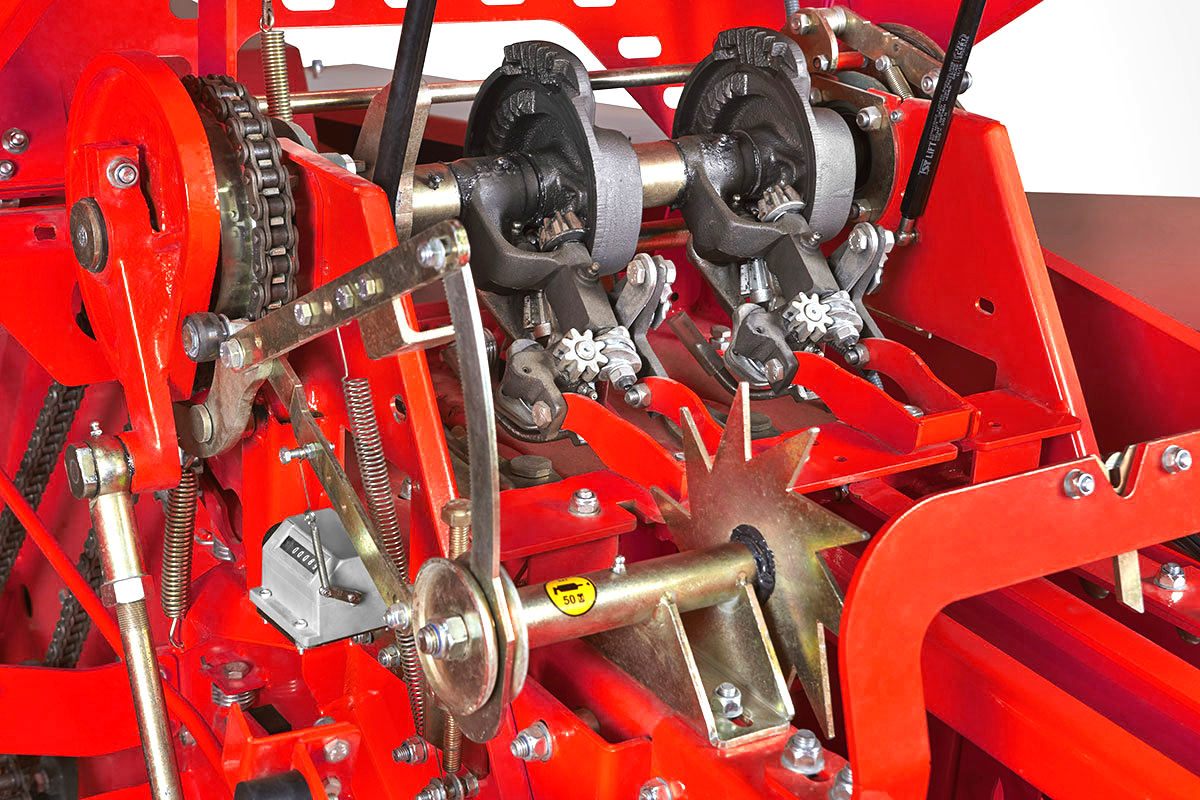

Knotter Set - 2 twines
Right Tire - 340/55-16
Left Tire - 340/55-16
Support Wheel - 11.00 x 4x5
Weight kg 1850
Length of Baler(on road) mm 4900
Length of Baler(on duty) mm 5560
Width of Baler mm 2600
Height of Baler mm 1870
Minimum Power Requirement HP 45
PTO 1/min 540
Transmission - 1 shaft
