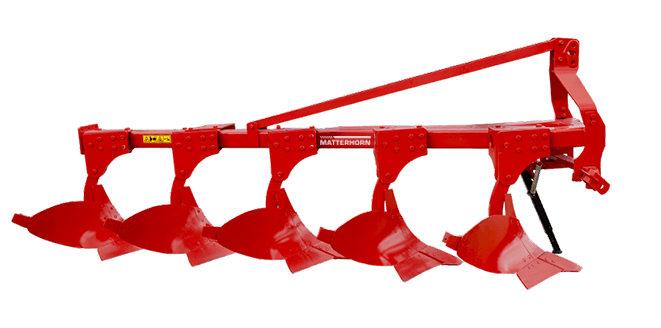

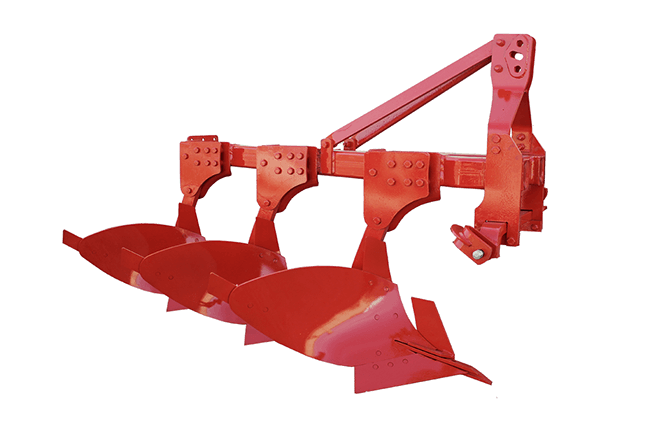

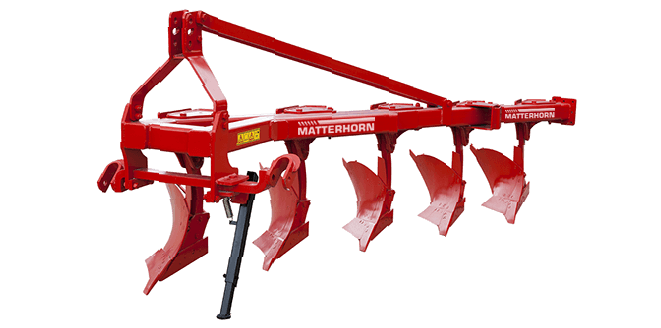

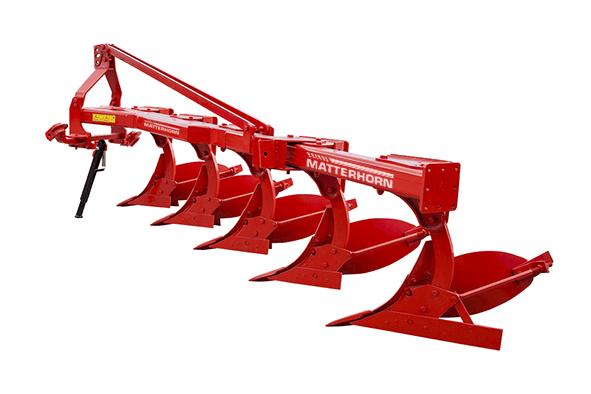

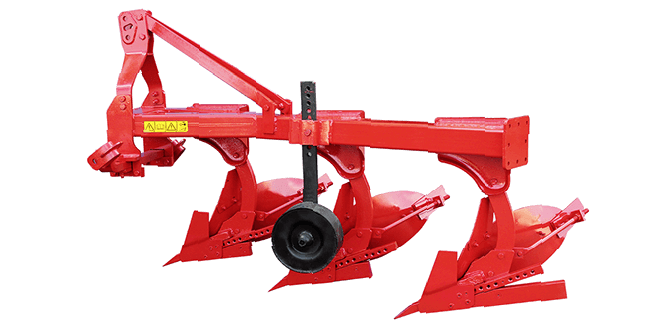

PROFILE PLOUGH

Matterhorn

PROFILE PLOUGH

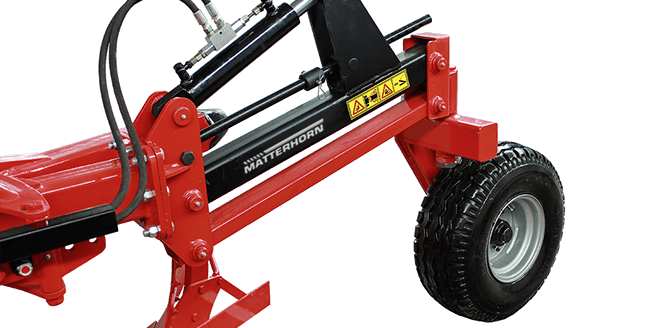

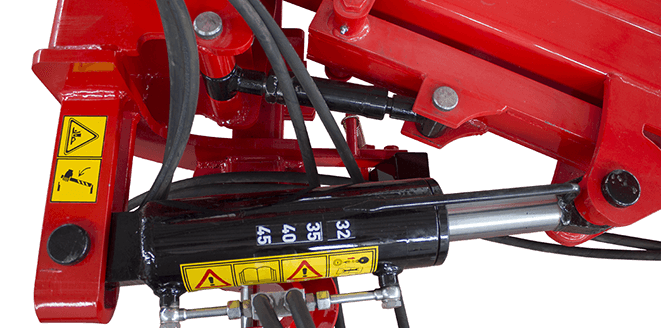

Produced from specially alloyed profiling to which stress relieving has been applied. Provides a wide range of products according to the types of soil in the moldboard and shares. It provides less cost with a split system in the moldboard and shares. Long life with one piece plate. Prevents damage to the body with its safety mechanism against overloading. It offers a wide range of usage options with the possibility of adjusting the work width. The additional body can be added using the flange on the main body. Hydraulic road position allows safe transport in traffic with the wheel system. (Optional)

TYPE(INCH) MTPP MTPPH
UNDERBEAM CLEARANCE 75 75
INTERBODY CLEARANCE 75 85
WORKING WIDTH 30-35-40 35-40-45
WORKING DEPTH 30 35
WEIGHT(KG) 2 / 3 / 4 / 5 410 / 452 / 665 / 763 478 / 624 / 770 / 887
POWER REQUIREMENT(HP) 2 / 3 / 4 / 5 55-70 / 65-85 / 80-100 / 90-110 70-85 / 80-90 / 90-105 / 110-130
